商品の詳細:
|
| 最大掘削深さ: | 54m | トルク: | 320 Kn.M |
|---|---|---|---|
| 最高。群集圧力: | 230 Kn | 回転の速度: | 5~27回転/分 |
| マックス 掘削直径: | 2500のmm | 最高。群集の引き: | 220 kN |
| 全体の重量: | 89t | 主要なウィンチ ライン引き: | 320 kN |
| 旅行速度: | 1.4km/h | 脳卒中: | 6000mm |
| 作動の高さ: | 22600mm | ||
| ハイライト: | hydraulic piling rig with 54m drilling depth,rotary drilling machine 320 kN.m torque,high-rise foundation drilling rig 2500mm diameter |
||

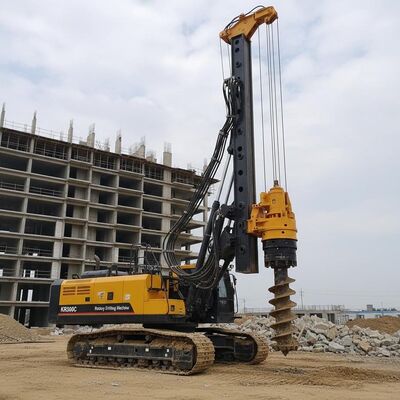

The KR300C Rotary Drilling Machine is a high-performance hydraulic piling rig designed for modern deep foundation construction. Featuring powerful torque, advanced hydraulic systems, and a reinforced CAT chassis, this drilling machine provides reliable performance for high-rise buildings, commercial complexes, bridges, and infrastructure projects.
With a maximum drilling depth of 54m and drilling diameter up to 2500mm, the KR300C is suitable for large bored pile construction under complex geological conditions.
The KR300C piling rig is equipped with a strong rotary drive system capable of generating 320kN.m torque. This allows efficient drilling through dense soil, gravel, and hard rock formations while maintaining operational stability.
The machine adopts internationally recognized hydraulic components including:
The optimized hydraulic system provides smooth operation, higher efficiency, and longer service life.
| Item | Specification |
|---|---|
| Model | KR300C |
| Max Torque | 320kN.m |
| Max Drilling Depth | 54m |
| Max Drilling Diameter | 2500mm |
| Rotation Speed | 5-27rpm |
| Crowd Force | 220kN |
| Main Winch Pull | 320kN |
| Engine Model | CAT C9 |
| Engine Power | 259kW |
| Operating Weight | 89T |
This hydraulic rotary drilling rig is widely used for:
The KR300C features a heavy-duty mast and strengthened steel structure to withstand demanding drilling conditions. The stable undercarriage ensures smooth operation during deep pile construction and increases overall construction safety.
TYSIM provides professional technical support and after-sales service for customers worldwide. The company exports piling machinery to Europe, Australia, Southeast Asia, South America, and Africa.
The KR300C hydraulic rotary drilling rig is an ideal solution for contractors seeking reliable, cost-effective, and high-efficiency foundation drilling equipment.
